NXP i.MX 6Quad SABRE Development Board (MCIMX6Q-SDB)

Product Description

This is the SABRE (Smart Application Blueprint for Rapid Engineering) Development Board from NXP Semiconductors, designed for evaluating and prototyping applications using the powerful i.MX 6Quad applications processor.

Ideal for engineers, students, and advanced developers, this board provides a feature-rich, low-cost platform to explore multicore processing, advanced multimedia, and low-power consumption for smart devices, industrial control, and embedded systems.

Key Features and Specifications

This board provides access to the full capabilities of the ARM Cortex-A9 core, complete with essential interfaces for rapid development.

• Processor: NXP i.MX 6Quad (Quad-core ARM Cortex-A9) at 1 GHz

• Memory: 1 GB DDR3 SDRAM

• Storage: 8 GB eMMC Flash

• Connectivity:

  • Gigabit Ethernet (10/100/1000) Port

  • 22-pin SATA Connector

  • USB 2.0 OTG (Micro USB)

  • mPCIe Connector (for Wi-Fi/Cellular expansion)

  • 2x Full-size SD/MMC Card Slots

• Multimedia & Display Interfaces:

  • HDMI Output

  • 2x LVDS Connectors

  • MIPI DSI Connector

  • Camera MIPI CSI Port

• Debugging/Sensors: JTAG Connector, Audio Codec, 3-Axis Accelerometer (MMA8451), and Magnetometer (MAG3110).

• OS Support: Includes Board Support Packages (BSPs) for Android and Linux (ready for U-Boot/Kernel development).

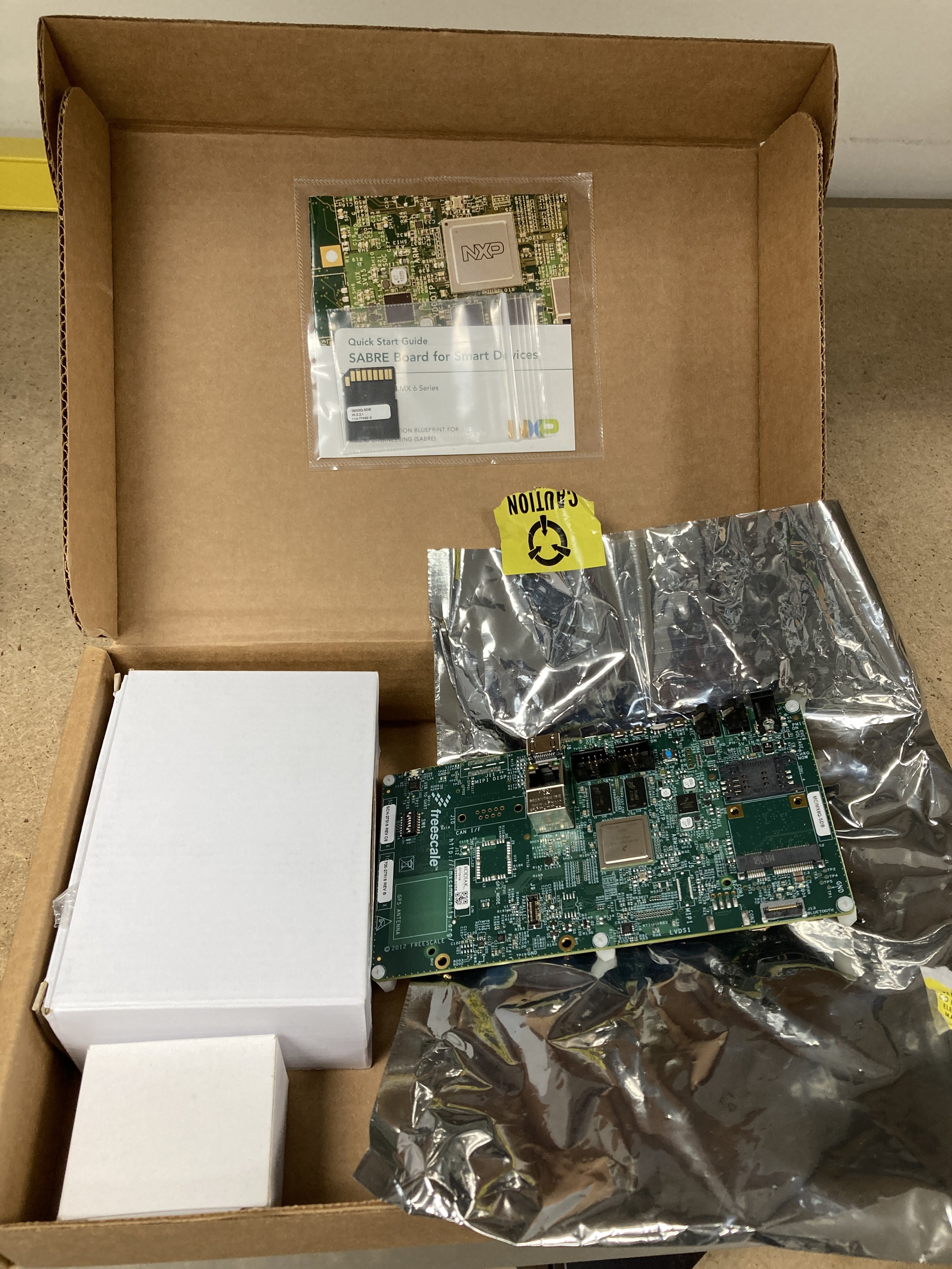

What's Included

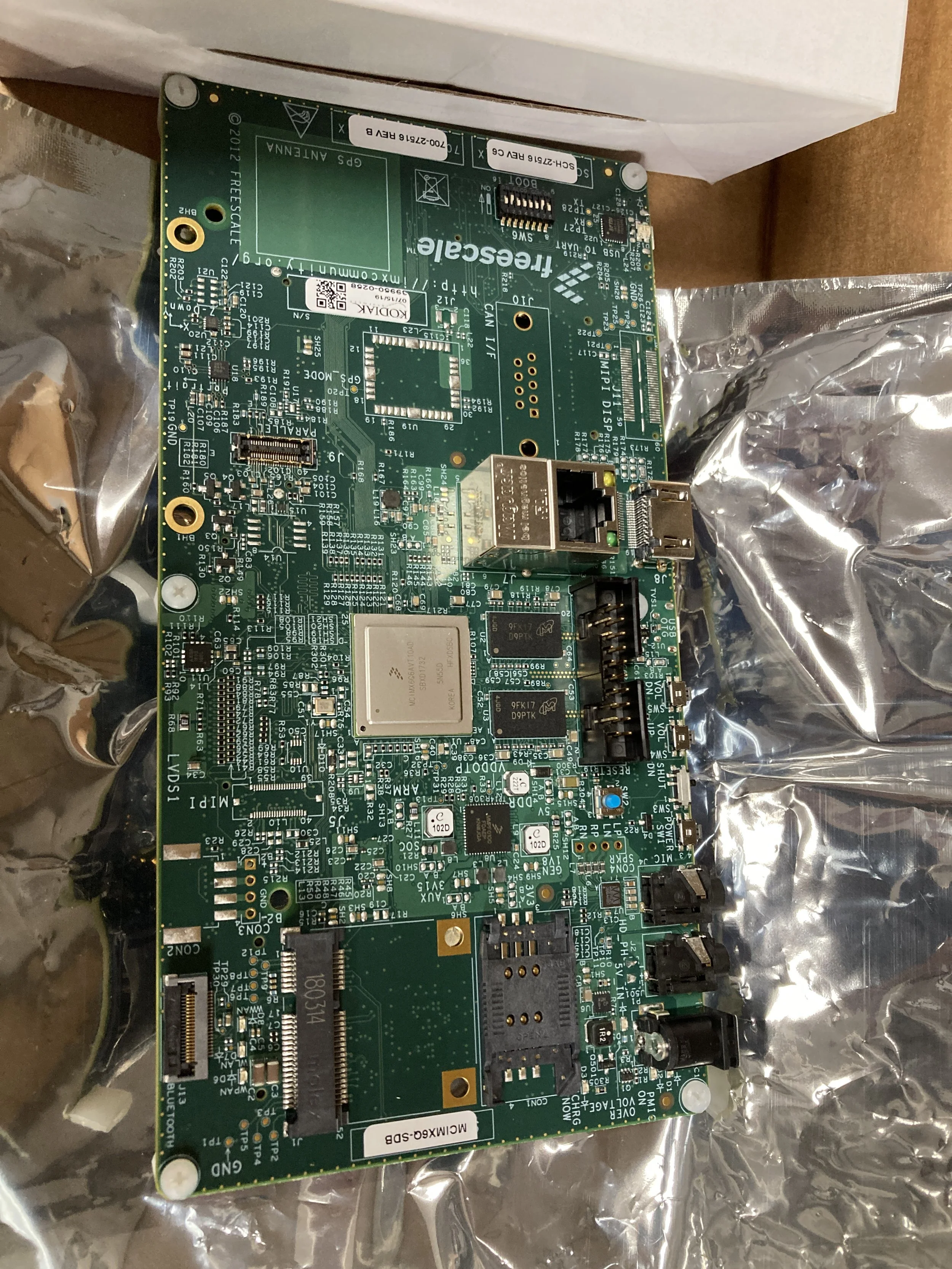

• NXP MCIMX6Q-SDB Evaluation Board

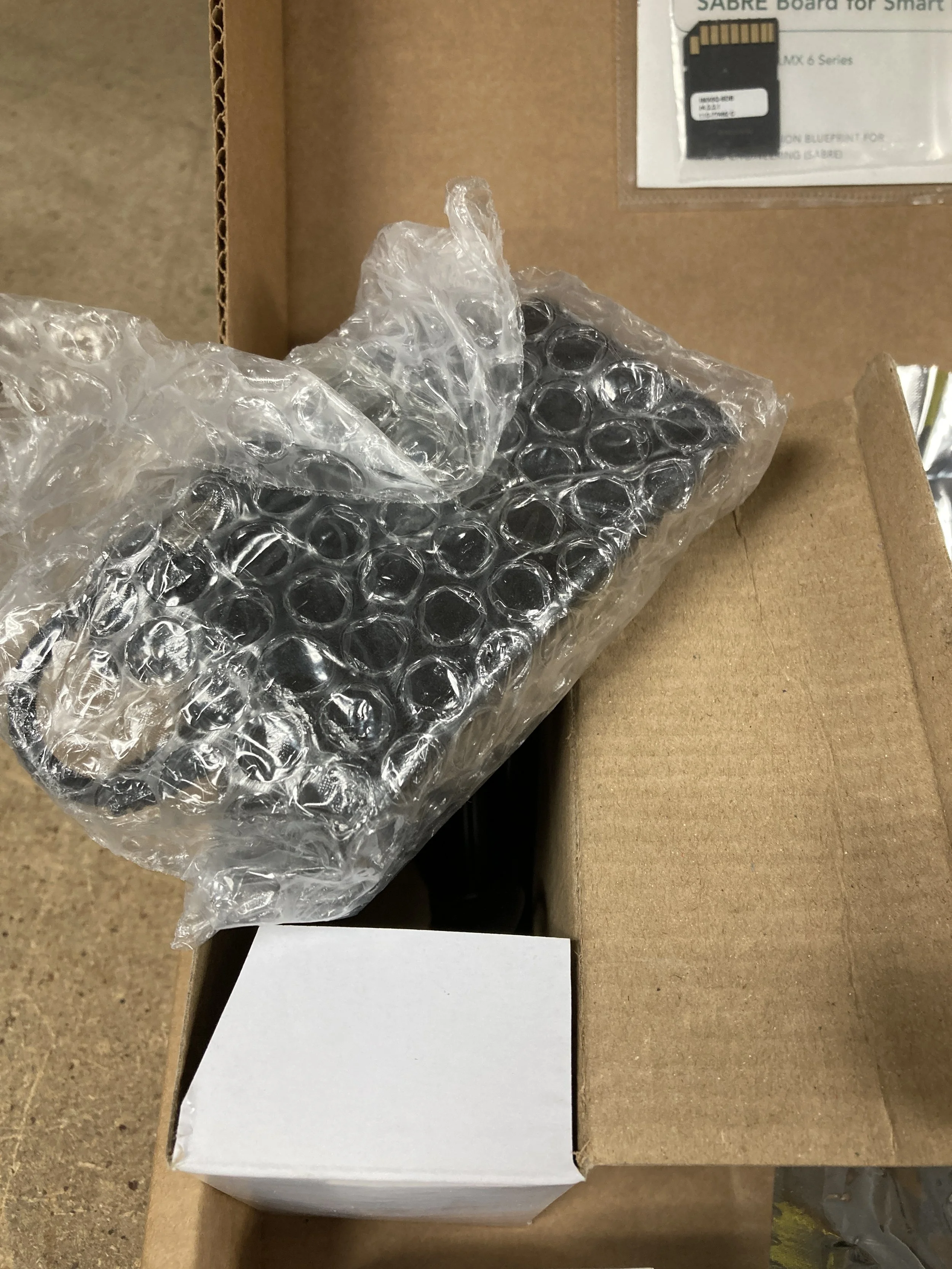

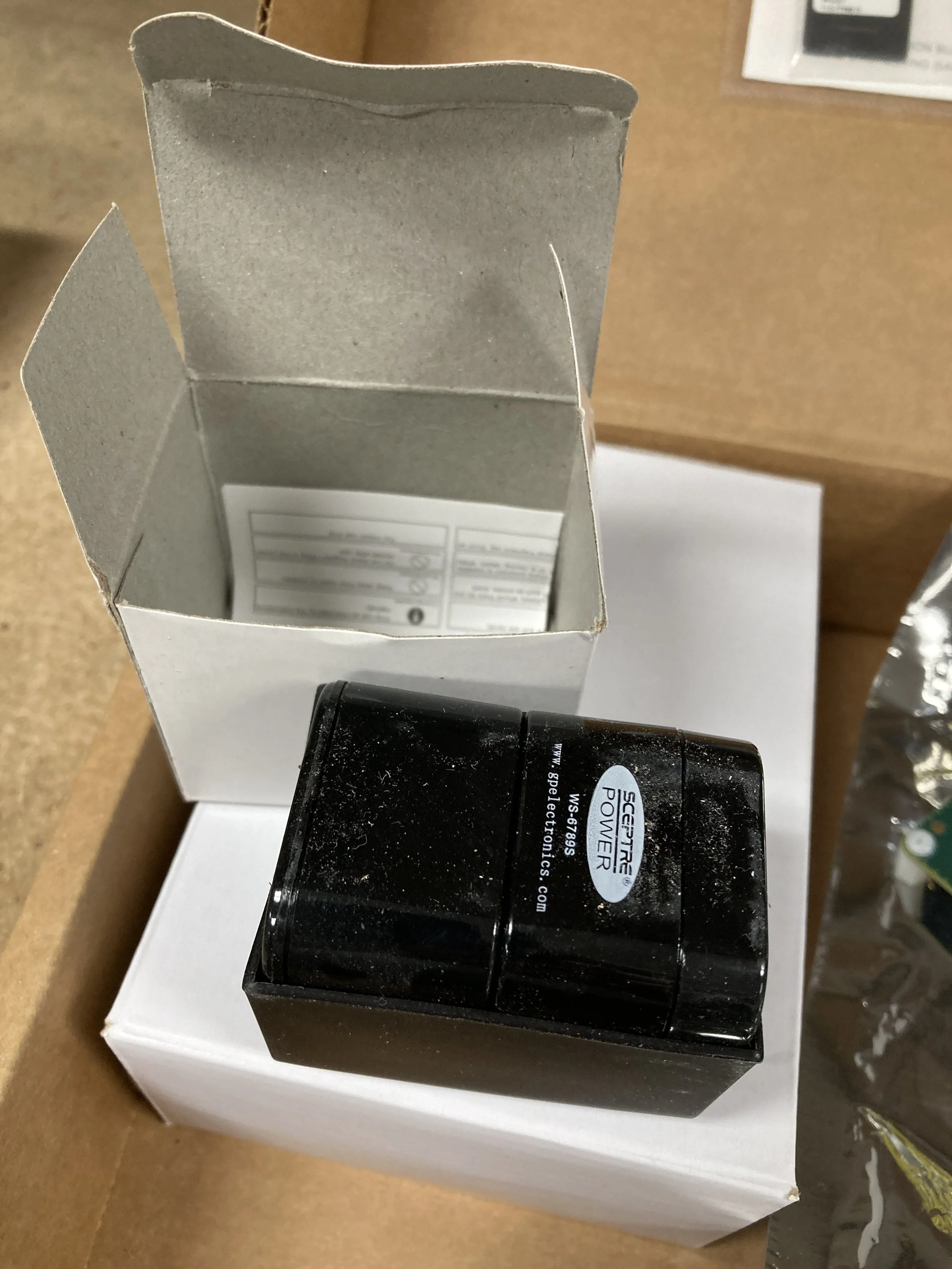

• Power Supply (5V)

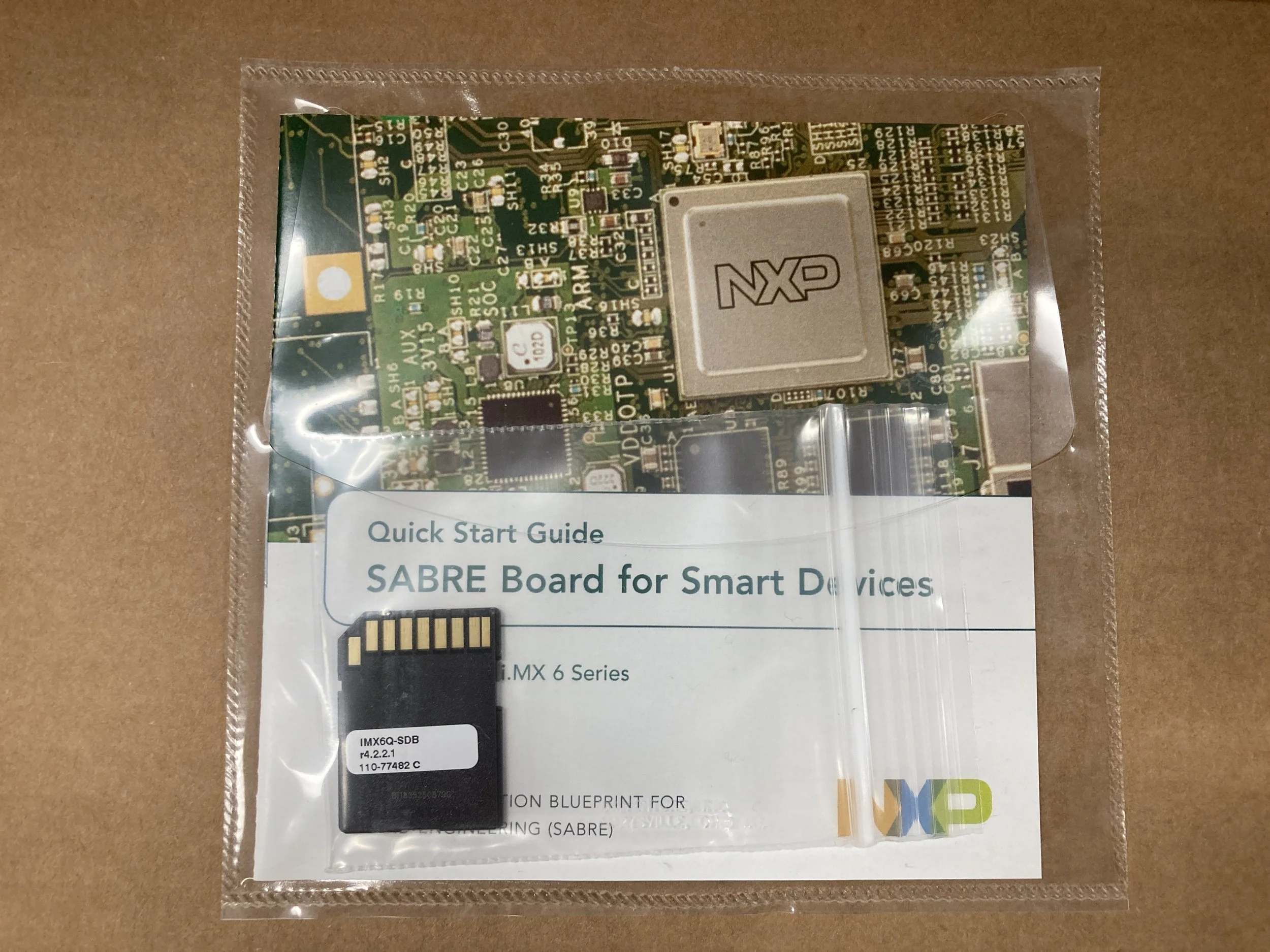

• Quick Start Guide

• Bootable SD Card (Pre-installed with Android/Linux OS demo image)
